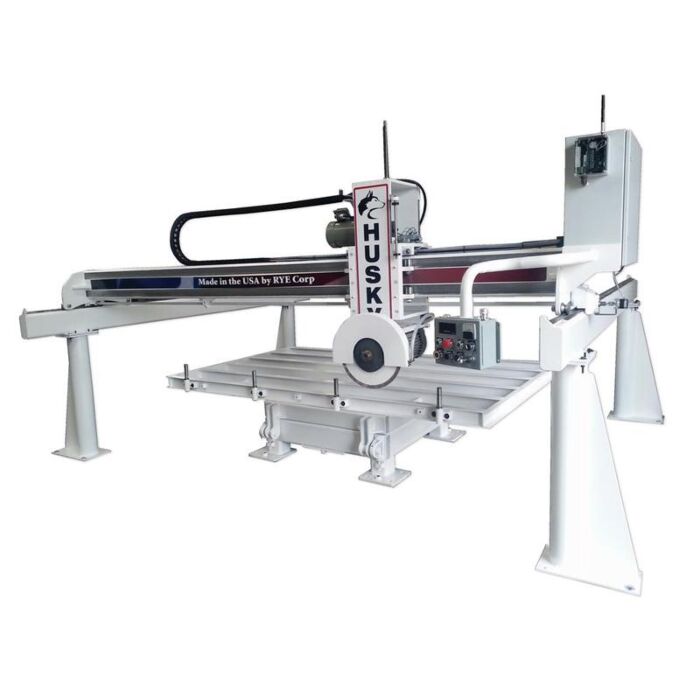

Husky Gantry Saw

Husky Gantry Saw with separate hydraulic powered turntable per the following specifications: Scope of Work: Dimensioning stone slabs for countertop work. Length of cut is 11’,4”. Structure: Precision machined rail and bridge. Overall dimensions are 15’ wide, 13’ deep, 9’ tall. Saw Feed: Saddle travels on 12 flanged rollers. Powered variable speed direct drive movement. Gantry Movement: Powered on V groove roller with inverter duty 1hp motor. Vertical Movement: 16” movement. With adjustable limit switches. Main Motor Spindle: 20 HP, 220v, 3 phase direct drive VEM motor, 18” diameter blade capacity. Miter cut capability. Water solenoid automatically turns the water on and off with the spindle motor. Operator Controls: Convenient control panel with amperage gauge and digital readout. Wireless operation remote control with 2 speed 3 axis control, saw motor stop/start, fwd cut maintain Turntable: Heavy duty 6’ x 10’ rotating turntable with hydraulic tilting and positive stops set at 0, 45, 90, and 135 degrees. Variable locking positions. Laser Light: High intensity laser to align material to blade path included. Weight of Machine: Approximately 10,000 lbs. Installation: Available. Delivery: 3 - 4 weeks from date of deposit. Warranty: 12 months on mechanical parts 6 months on electrical. Warranty starts from date of delivery. Warranty is for part replacement only, labor and travel expenses are not included. Shipping: F.O.B. Knoxville, TN. Freight quotes can be obtained and added to the total as required. Option 8 inch touch screen with programmable movement Customer Responsibilities: *Forklift (10,000 lb) and crew as necessary to off load, position, and set the machine. *Level 6” thick concrete floor adequate to accept the machine. No more than a 3” slope over 20’. *All local and regional permits and inspection fees. *Fused disconnect 208-230 v, 3 ph, 60 amp circuit. Electrician to connect the service to the machine. Recommend 8/4 SO cord. *Clear water 5 gpm with proper drainage.
